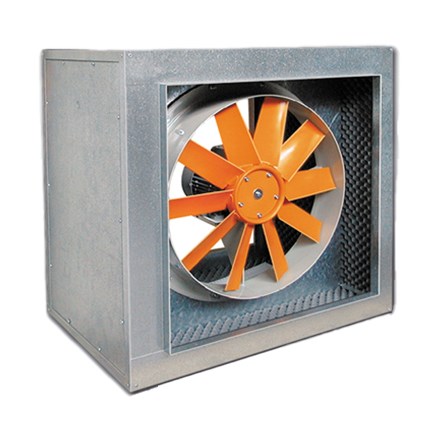

mcr Monsun E1 - axial air supply and exhaust fan in soundproof housing

Key details

Fire resistance classes:

- not required



Description

mcr Monsun E1 axial fans in box-type housing are used in comfort ventilation systems for exhaust or supply of air, and where thermal and acoustic insulation of the housing, reversibility of the system, or explosion-proof making is required.

The devices are adapted for outdoor, as well as indoor operation.

Get in touch

Sales

Download

  • fan in thermal and soundproof housing
  • possibility of reversible work
  • possibility of vertical and horizontal installation
  • available diameters: 400, 450, 500, 560, 630, 710, 800, 900, 1 000, 1 250 mm
  • efficiency up to 150 000 m3/h
  • max. compression up to 1 200 Pa
  • nominal power 0.55 kW - 30 kW
  • rotation speeds n = 750; 1 000; 1 500; 3 000 RPM
  • IP 54/55 protection class
  • Production halls and warehouses
  • Logistics centers
  • Public buildings
  • Commercial buildings
  • Residential buildings

Making variants:

  • one-speed
  • two-speed

Additional equipment:

  • WS service switches

recommended
